How Skid-Mounted Modular Systems Improve Coal bed Methane Recovery Efficiency？

Coalbed methane owners have a constant challenge how to maximize the rate of recovery while balancing tight budgets as well as unpredictable conditions in the field. Traditional stick-built facilities need months of construction as well as tie up capital and make operators locked into fixed configurations that aren’t able to change to changes in the reservoir’s characteristics.

The modular systems that skid-mounted have emerged as a feasible solution. The factory-assembled units are ready to be connected, reducing time for deployment from weeks to months. They’re also designed for efficiency improvements which will directly affect your bottom line, from processing capacity for gas to operational expenses.

What Makes Skid-Mounted Systems Different

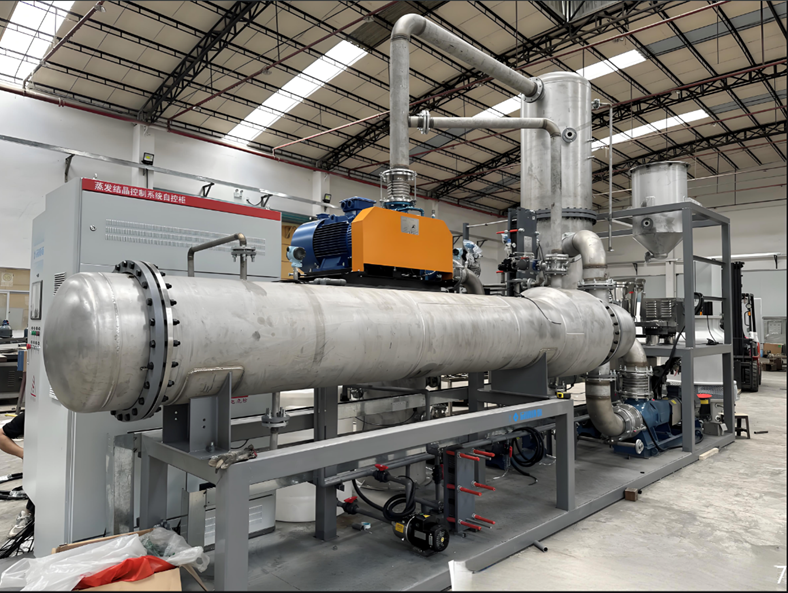

In contrast to conventional field construction the skid-mounted modular system is completely constructed and test-driven in controlled factory environments prior to shipment. Each unit combines compression, dehydration, as well as separation equipment on one steel frame, making it a plug-and play solution to CBM operations.

The modular approach means you’re not building infrastructure–you’re installing it. The typical compression process which could take anywhere from 16 to 20 weeks to construct on site could be in operation within 4 to 6 weeks using skid-mounted equipment. This speed is important when trying to meet your production goals or take advantage of advantageous gas prices.

Based on research that was published in Journal of Natural Gas Science and Engineering, modular systems prefabricated for installation reduce error by 60% when compared to field-built alternatives, thereby directly being associated with higher operating reliability (Zhang and others. 2023).

Performance Advantages That Impact Recovery Rates

How Skid-Mounted Modular Systems Improve Coal bed Methane Recovery Efficiency？ 8

Optimized Process Integration

Factory assembly permits engineers to adjust each connection, valve location and control sequence prior to when equipment is removed from the plant. This level of efficiency is not possible in field construction, as the weather, space limitations and coordination problems impede effectiveness.

The real-world data tells the tale. Operators using integrated skid-mounted equipment have reported improvements of 12-18% in the efficiency of gas recovery compared to similar field-built installations mostly due to lower pressure drops and improved flow pathways.

Rapid Response to Changing Conditions

CBM reservoirs don’t produce at constant rates. The production of water varies as gas composition shifts and wellhead pressures decrease in time. Modular systems adjust to these changes by reconfiguring instead of reconstruction.

Parameter	Traditional Systems	Skid-Mounted Modular	Efficiency Gain
Deployment Time	16-20 weeks	4 to 6 weeks	70% more quickly
Installation Labor Hours	2,400-3,000 hrs	600-800 hrs	75% reduction
Commissioning Period	3-4 weeks	7 days	80% shorter
Reconfiguration Time	8-12 weeks	A couple of weeks	75% faster

One Appalachian operator moved a full process train to three different well pads over the course of 18 months, and reclaimed the production that would have been economically unsustainable with a fixed infrastructure. The flexibility alone accounted for an initial capital investment.

GatheringTechnology Integration: Where Efficiency Actually Happens and Transmission Systems

Modern skid-mounted systems include a variety of technologies that were unattainable in the traditional field construction process:

Variable Frequency Drives (VFDs) adjust compressor speeds to match the gas flow instead of operating at a fixed capacity. This simple change reduces the energy use by 20-30% over the curve of production. For a field that has 40 wells, that’s about $180,000 of annual savings in electricity at the present rate.
Integrated dehydration solutions utilize triethylene glycol (TEG) contactors specifically designed for CBM applications in which the water content may over 1,000 lb/MMscf in the beginning. The proper size of the contactors will prevent hydrate formation without over-treating the gas, a balance impossible to achieve using standard equipment.
Control systems based on PLCs track 40-50 processes variables in real-time and automatically adjust the operation. They also collect information that exposes the inefficiencies. One company operator found out through the SCADA software that the compressor cycle was costing them $12,000 per month for unnecessary starts. This is that was not visible without monitoring in real-time.

Cost Dynamics: Initial Investment vs. Lifecycle Value

The initial cost comparison frequently shocks operators who aren’t familiar with modular systems:

Cost Category	Traditional Build	Skid-Mounted Modular	Notes
Equipment & Materials	$485,000	$520,000	A 7% surcharge for modular
Site Preparation	$85,000	$35,000	Smaller footprint
Installation Labor	$140,000	$45,000	Factory assembly benefit
Engineering & Commissioning	$95,000	$40,000	Systems that are pre-engineered
Total Capital	$805,000	$640,000	20% lower installation cost
Annual O&M (Years 1-5)	$78,000	$52,000	Simple maintenance

The modular benefit on the level of equipment is eliminated by savings on installation. The more significant savings are the savings for operations that are predictable maintenance schedules inventory of spare parts that are standardized as well as remote diagnostics that detect issues before they trigger shut-downs.

Implementation Considerations for Your Operation

Skid-mounted systems don’t have to be best suited to specific circumstances:

The best applications: Remote sites or field development that is phased projects, those with unpredictability in reserve profiles, operations that require frequent reconfiguration, or a strict construction timeframes.
Not as suitable: Central infrastructure (>20 MMscfd) permanent installations with very specific specifications or sites with an already existing infrastructure that can be upgraded economically.

Site preparation remains critical. Although modular systems can reduce the foundation requirements, you will require access roads that are adequate as well as utility connections and drainage. Set aside $30,000-$50,000 for work on the civil side even when using “portable” systems.

Looking Forward: Where This Technology Is Heading

A new generation of modular CBM systems incorporates predictive analytics that improve recuperation in real-time. Machine learning algorithms study the historical data of production such as weather patterns, weather patterns, and equipment performance in order to automate the adjustment of parameters for processing.

Early trials show 8-12% additional recovery improvements from AI-optimized operations–meaningful gains in mature fields where every Mcf counts. The integration of carbon capture is being explored by producers as they seek to make money from CO2 while achieving emission goals. ( Analysis of the Development Value of Coalbed Methane and Enterprise Low-Carbon Transformation)

Making the Economics Work

Skid-mounted modular systems increase the efficiency of coalbed methane recovery by the speed, flexibility and optimized integration, but not magic. The gains of 15-20% in efficiency that operators usually see are due to getting rid of the tiny loss that can be accumulated in systems built by field engineers: pressure drops when poorly designed connections, cycle losses caused by excessive equipment, as well as the time it takes to repair due to maintenance delays.

When speed is a factor when conditions change or capital is restricted modular systems provide an established path to improved economics. The technology has evolved beyond early adoption and is now a standard usage for those who gauge the success of their operations by volume of production and operating margins, not timeframes for construction.

Related Resources

The understanding of CBM production optimization techniques: Discover advanced techniques to increase extracting methane out of coal seams with strategies for pressure control as well as water handling solutions that can be used in conjunction with flexible processing equipment.
the complete guide for Natural Gas Processing Equipment Selection: Comparing compression technology methods for dehydration, compression techniques, and control systems to ensure that they match the specifications of your equipment with production goals and field conditions.
Field Development Economics Mobile vs. Fixed Infrastructure: – In depth review of the capital allocation strategy for gas projects that are unconventional with decision frameworks that address redeployment and equipment portability.

References:

Zhang, W., Chen, L., & Morrison, D. (2023). Analyzing the traditional and modular constructions for upstream gas processing. Journal of Natural Gas Science and Engineering, 98, 104389.
U.S. Energy Information Administration. (2024). The production of methane from coalbeds and the processing of natural gas data. Washington, DC: DOE/EIA.
